36 Lac / 1 Piece( + 18% GST applicable)
| Business Type | Manufacturer, Exporter, Supplier |
| Warranty | 1 Year Free/ Paid Service Life time,1 Year |
| Brand Name | DTH Drilling Rig |
| Driven Type | Hydraulic |
| Click to view more | |
Product Details
Color
Black, Blue, Brown, Grey, Light Green, Light White, Customer Requirement,As per Customer Requirement
Condition
Nwe
Automatic Grade
Automatic, Manual, Semi Automatic
Application
Deep Borewell Drilling/Hard soil Drilling/Water well Drilling
Certification
CE ISI
Type
DTH
Material
ISO Certified Heavy Duty Iron
Size
6" To 12" Bore Hole Dia
Country of Origin
India
Product Code
DEW-DTH350
Port
Mundra
Payment Terms
D/A, D/P, T/T, Western Union, Other
Delivery Time
30 working days
Packaging Details
Heavy Duty Plastic Tapper.

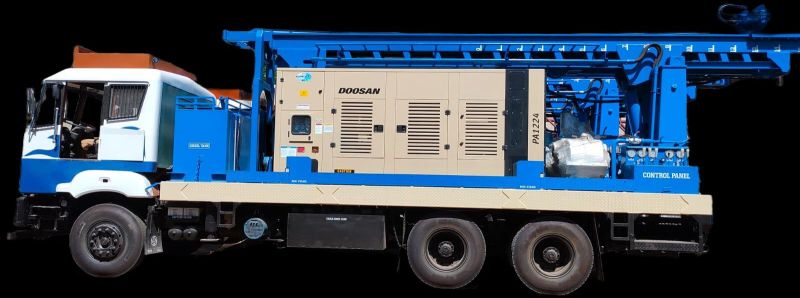

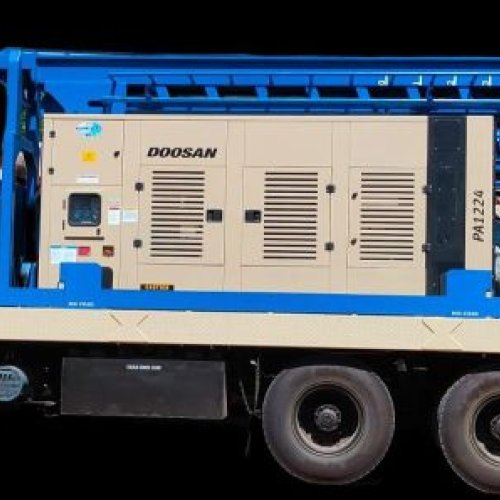

DTH DRILLING RIG MACHINE/WATER WELL DRILLING RIG
- APPLICATION-----------------------------Water Well Drilling
- DRILLING CAPACITY----------------------350 Meters.
- DRILLING METHOD-----------------------DTH Cum Rotary
- HOLE DIAMETER--------------------------6" To 12" Inch
- MAXIMUM DEPTH-------------------------350 Meters
- ROD LIFTER-------------------------------Manual
- PRIME MOVER----------------------------Deck Engine/PTO
- TRUCK MOUNTED------------------------Ashok Leyland/Sino/As per Customer Requirment
- HYDRAULIC SYSTEM PRESSURE---------3000 PSI
- PULL-UP FORCE---------------------------9200 KGS
- PULL-DOWN FORCE-----------------------6300 KGS
- SUITABLE COMPRESSOR-----------------1200-CFM/350-PSI
- Top Head Rotary Drive--------------------Max.300 kgs meter, torque
- Rotation------------------------------------0-160 RPM.
- ADDITIONAL REQ-------------------------Extra truck for Air Compressor & Drill rods.
