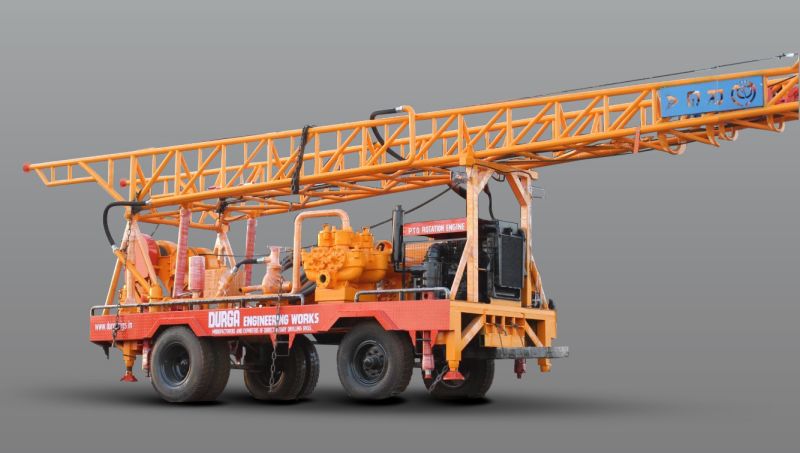

Trailer Mounted Drilling Rig

Link Copied

25.50 Lac / 1 Unit( + 18% GST applicable)

Edit

Business Type	Manufacturer, Exporter
Surface Treatment	Water Well Borewell Drilling Rig Machine/Pilling Machine
Power Source	Deck Engine
Phase	2 Phase
Click to view more

Product Details

Warranty

1 Year Free/ Paid Service Life time

Features

it is easy to operate and can be easily taken from one place to another with a tractor.

Spindle Speed Range

2200-2600 RPM

Brand Name

Trailler Mounted Water Well Drilling Rig Machine,Durga

Material

Heavy Duty ISO certified Iron.

Type

Drilling rig

Country of Origin

India

Product Code

DEW-DR1000

Port

Mundra

Payment Terms

Other

Delivery Time

30 working days

Packaging Details

Plastic Tapper.

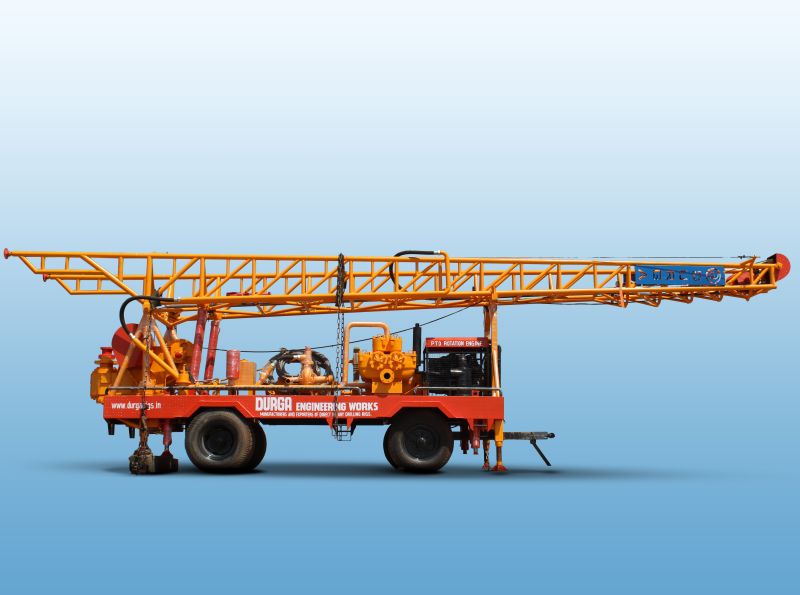

Trailler Mounted Rotary Drilling Rig/Water Well Drilling Rig/

Model Name: DEW DR-1000

APPLICATION..............................................DIRECT ROTARY DRILLING RIG /WATER WELL DRILLING RIG

^{DRILLING METHOD------------------------}^{-------DIRECT ROTARY}
^{HOLE DIAMETER RANGE-------------------------}^{-5 1/2" TO 24"}
^{MAXIMUM DEPTH-------------------------}^{---------300 METERS (1000 FEET)}
^{PULL UP FORCE-------------------------}^{-----------35000 KGS}
^{PRIME MOVER-------------------------}^{-------------TRUCK ENGINE OR DECK ENGINE}
^{POWER TACK OFF---------------------------}^{-------1 INPUT 3 OUTPUT}
^{ROTARY TABLE-------------------------}^{------------14" CROWN 5" SQUIRE SPINDAL HOLE}
^{DRAW WORK--------------------------}^{-------------18" CHAIN DRIVE}
^{MUD PUMP--------------------------}^{---------------6"x10" DOUBLE ACTING DUPLEX WITH CENTRIFUGAL PUMP}

Note:- we are happy to inform you we have different models of rotary drilling rigs are available for all types of customer requirements. rotary drilling rigs equipments are also available for all models and types.
