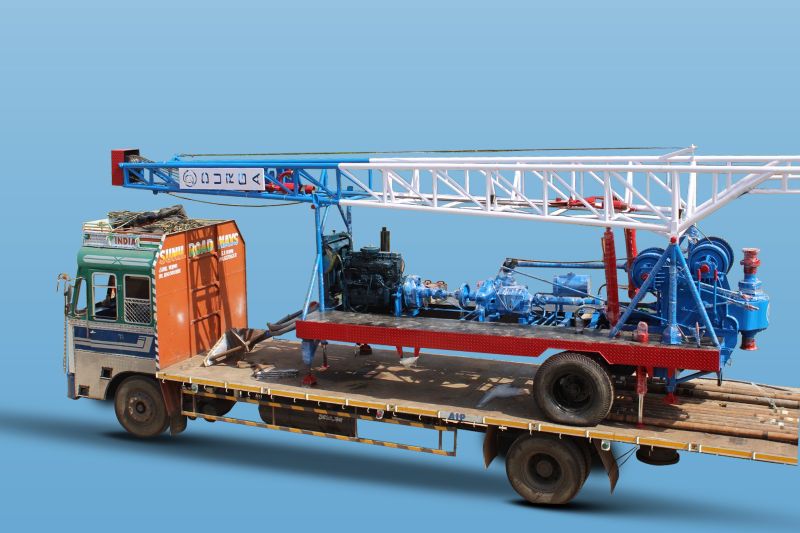

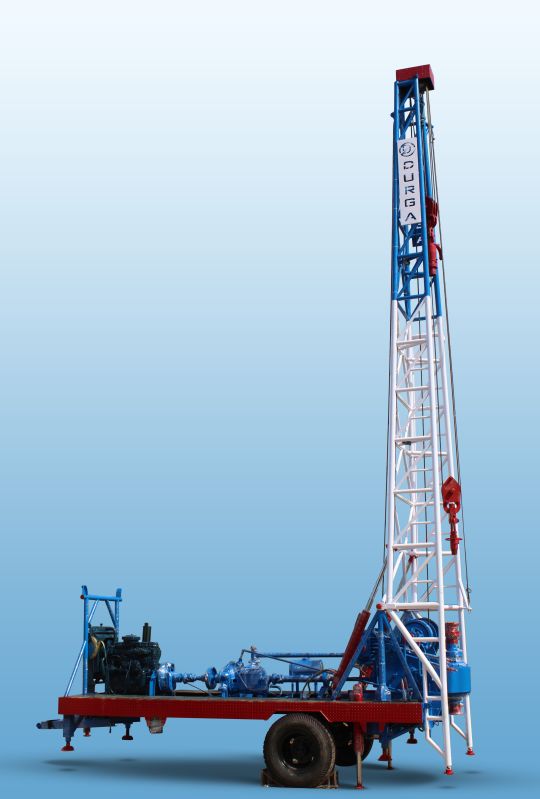

Trolley Mounted Drilling Rig Machine

Link Copied

17.50 Lac / 1 Unit( + 18% GST applicable)

Edit

Business Type	Manufacturer, Exporter
Surface Treatment	Water Well Borewell Drilling Rig Machine/Pilling Machine
Power Source	Deck Engine
Phase	2 Phase
Click to view more

Product Details

Warranty

1 Year Free/ Paid Service Life time

Features

it is easy to operate and can be easily taken from one place to another with a tractor.

Spindle Speed Range

2200-2600 RPM

Brand Name

Trolley Mounted Drilling Rig Machine,Durga

Material

Heavy Duty ISO certified Iron.

Type

Borewell Drilling Rig

Country of Origin

India

Product Code

DEW-DR600

Port

Mundra

Payment Terms

Other

Delivery Time

30 working days

Packaging Details

Heavy Thickness Plastic Tapper.

Trolley Mounted Rotary Drilling Rig/Water Well Drilling Rig/Borewell Drilling Rig

Model Name: DEW DR-600

APPLICATION....................................TROLLEY MOUNTED WATER WELL DRILLING RIG

DRILLING METHOD-------------------------------DIRECT ROTARY
HOLE DIAMETER RANGE--------------------------5 1/2" TO 20"
MAXIMUM DEPTH----------------------------------200 METERS (600 FEET)
PULL UP FORCE------------------------------------6000 KGS
PRIME MOVER--------------------------------------TRUCK ENGINE OR DECK ENGINE
ROTARY TABLE-------------------------------------24" CROWN 6" HEXAGONAL SPINDAL HOLE
DRAW WORK---------------------------------------28" CHAIN DRIVE
MUD PUMP-----------------------------------------4"x4" CENTRIFUGAL PUMP
